Class B Table Top Pulse Vacuum Steam Sterilizer with Automatic Door

Sada Class B Table Top Pulse Vacuum Steam Sterilizer with Automatic Door

Model: TS-DDV
Sterilizing Volume: 45L

Application:

Medical Instrument Sterilization Autoclave are widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, funeral homes, dentistry, and prosthetics fabrication.

They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other equipment and waste, surgical instruments and medical waste.

Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.

Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time：5 – 10 working days.

Features of Table Top Pressure Steam Sterilizer

Automatic door switch
Quality stainless steel inner tank, sealed cover
Microcomputer control
Safety interlocking device
With BD test,HELIX test, Vacuum test.
LED display and inductive operation
Equipped with standard test interface
Open-type top water tank
European CLASS B standard.
With automatic protection function: over temperature protection, over pressure protection, low water level protection, anti dry burning, safety door lock.
Three times per-vacuum
Buzzer reminder after sterilization, automatic stop.
Automaticdischarge of cold air, automatic steam exhaust after sterilization.
Built-in steam generator to provide saturated steam quickly
With built-in printer, USB function and U disk

Specifications

Brand: Sada Medical

Model: TS-DDV
Sterilizing Volume: 45L

Model Technical parameter	TS-DDV18	TS-DDV23	TS-DDV45
Volume	18L	23L	45L
Power	2.2kw	2.2kw	3.5kw
Voltage	110V/220V,60HZ/50HZ
Rated working pressure	0.22Mpa
Rated working temperature	134℃
Chamber volume	Ø250×370	Ø250×470	Ø316×615
Outer dimension	505×620×450	505×710×450	657×870×575
Packing size (L×W× H )	670×560×510	760×560×510	980×750×630
Gross/net weight	62/53KG	65/58KG	142/105KG

Delivered Orders

Video of Medical Equipments

Certficates of Medical Equipments

Inquiry us Now

Pass through pressure steam sterilizer with motor-drive doors

Class N Type Vertical Pressure Steam Sterilizer for Health Institutions

High Quality Low Temperature Plasma Sterilizers

Class B Type Automatic Horizontal Pulsating Vacuum Sterilizer For Hospotal

Sada Medical HA-BA Steam Sterilization Medical Devices Horizontal Rectangular Autoclave with Printer

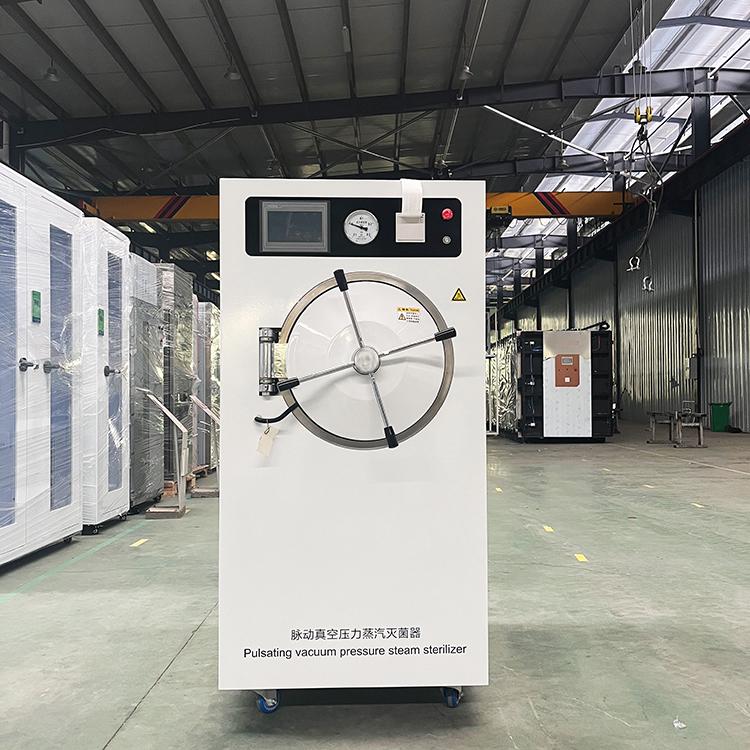

Sada Medical HA-BA Steam Sterilization Medical Devices Horizontal Rectangular Autoclave with Printer

Model: HA-BA
Sterilizing Volume: 150L, 200L, 280L

Application:

They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other equipment and waste, surgical instruments and medical waste.

Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.

Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time：20 – 25 working days.

Features of Horizontal Pressure Steam Sterilizer

Automatially controlled the sterilizing process, easy to operate.
With drying function, suitable for the medical dressing drying.
With over-temperature, over-pressure auto-protect.
The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn’t close well.
The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
The chamber of the sterilizer is made of stainless steel.
With printer.
